How to choose LED Post Top Area Lights?

Outdoor lighting has a direct type, which emits a concentrated beam or beam of light, and a general illumination type, which means that the light is evenly scattered in the courtyard.

On the one hand, the direct type is for practical purposes, and on the other hand, it is to highlight a focal point in the courtyard; the general type only needs to install lighting equipment in the courtyard to achieve the desired effect.

LED Post top garden lights can change the appearance of the environment. Artistic lights and colors constitute a dynamic and static light, sound and color landscape, which can embellish the landscape and realize the sculpted fashion.

The led garden light uses the light source to illuminate the objective existence carrier, so that the landscape lighting is divided into two elements of the light source carrier viewpoint in the space.

For this reason, according to the analysis of the properties of space and time for the purpose of construction, the lighting that beautifies the city is called landscape lighting.

It can be seen that in the process of landscape lighting construction, the reasonable application of various light sources is based on some characteristic buildings. In order to fully express the obvious local characteristics of these buildings, the use of LED garden light such as internal light and external light penetration technology can better show the vivid three-dimensional effect.

how-to-choose-led-post-top-area-lights-step-by-step

What materials is better for led post top area light?

There are three main materials for led post top are lights, one is aluminum garden lights, the other is iron garden lights, and there is a common steel garden light. The three production processes are somewhat different, the abrasives are different, the construction period is also different, the degree of complexity is also different, and of course the effect is also different.

At present, aluminum material is the most popular style on the market for our customers, and our standard color is bronze, also white color and silver color are available.

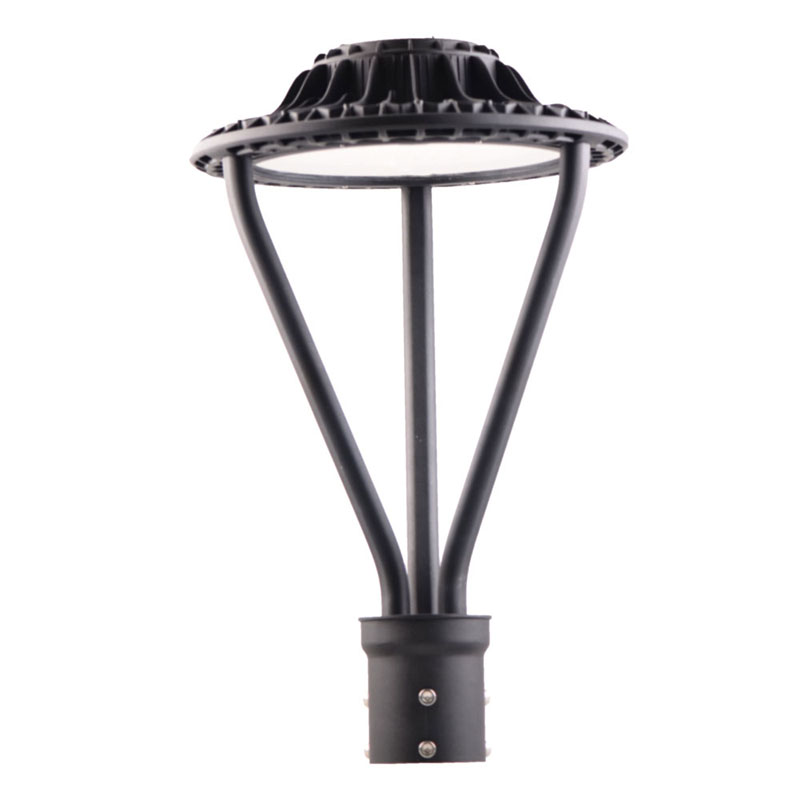

Standard Bronze Shape color

how-to-choose-led-post-top-area-lights-step-by-step

Silver shape color available

how-to-choose-led-post-top-area-lights-step-by-step

White shape color available

Choose materials from firmness

Among led garden light materials, aluminum has a low boiling point, strong flexibility, and is easily deformed when encountering high temperatures. Compared with steel, it has a slightly weaker firmness. It is generally not recommended to use in windy areas. The wall thickness of the steel material can be increased, the stability is high, and the supporting force is strong.

Choose materials from workmanship

From the point of view of workmanship, the materials of led post top lights are different. The workmanship of cast aluminum and cast iron is much more complicated than that of steel materials. In the specific operation, the aluminum led post top light is first to be fired into liquid, and then the liquid is transformed into a mold through a special abrasive tool. Various patterns are engraved on the aluminum pole, and galvanized and sprayed after it is dried. The steel material is just cut into the required conical plates with a steel plate through a shearing machine, and then rolled into a light pole by a plate rolling machine at a time, and then welded, polished and other processes are used to make it look beautiful. After completion, it is galvanized and sprayed.

Choose materials from price

The materials of led post top garden lights are different, and the prices are also quite different. The production process of cast aluminum is complicated, the material cost is high, and the shape is peculiar. Therefore, it is normal that the price is 3-6 times higher than that of steel courtyard lights.

How many watts of LED Post Top garden lights in the community?

The installation of led post area lights in the community mainly has functional lighting, which is convenient for residents to go out at night and ensure safety at night. The second is to use decorative and personalized courtyard lights to add brilliance to the environment; then how many watts of led post top light are in general?

The led post top lights installed in the community are generally about 3 meters high. Different types of courtyard lights are selected according to the different styles, installation positions and functions of the community. Generally, the installation spacing of the courtyard lights in the community is between 20 meters and 30 meters. The walkway lighting requirements in the small area reach 100-200 Lux; it can facilitate people to travel conveniently; the power of the courtyard lights in the community are now equipped with LED light sources between 30W-50W.

how-to-choose-led-post-top-area-lights-step-by-step

Our led post top area light have 30watt, 50watt, 75watt, 100watt and 150watt available for your choose.

ModelBB-LD-XXW-AR-B
Watt30W 50W 75W 100W 150W
Color Temperature3000K 4000K 5000K 6000K

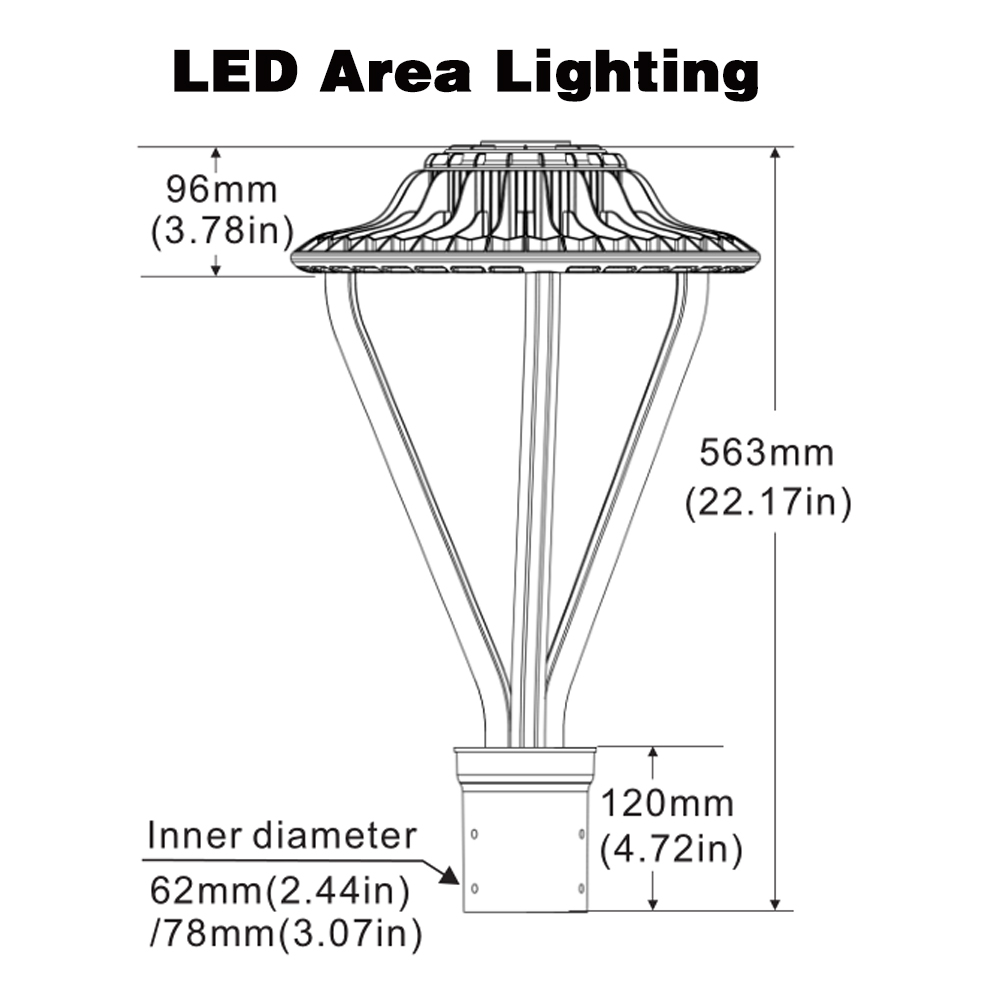

MountingPole adapter 62mm or 78mm
Luminous Efficacy130lm/w 150lm/w available
Beam angle120
Luminous SourceSMD LED
Input Voltage100-277VAC/50-60HZ, 347-480VAC available
DriverUL power supply
FunctionPhotocell sensor, motion sensor
Lifespan50,000 hours at 25℃
IP rateIP 65
PF factor>0.95
Warranty5 years

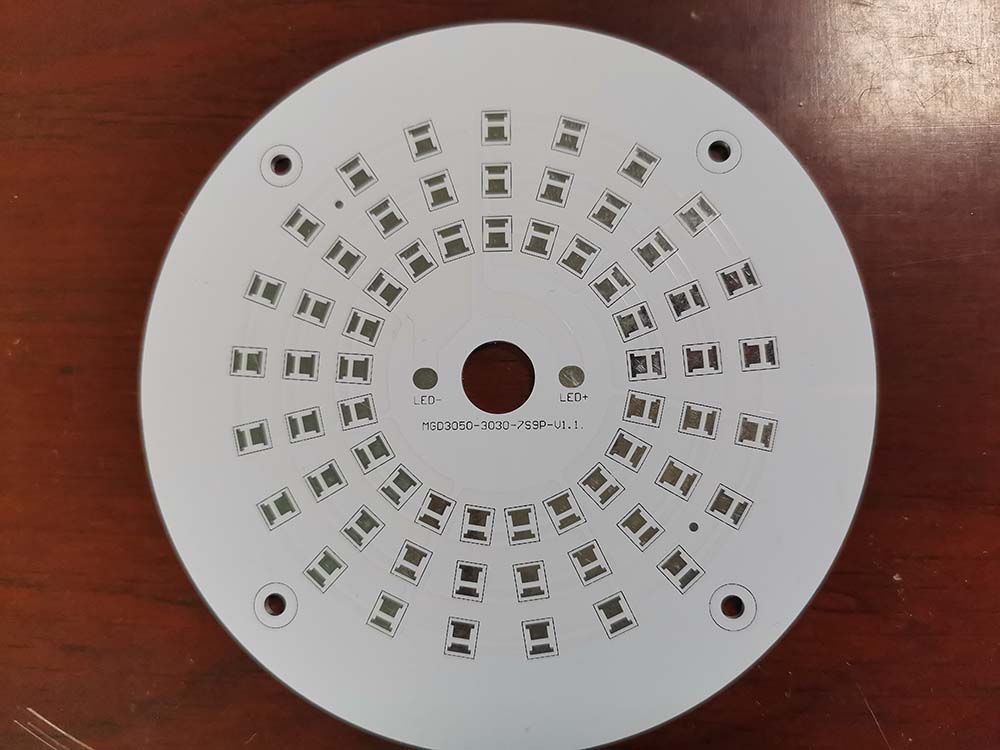

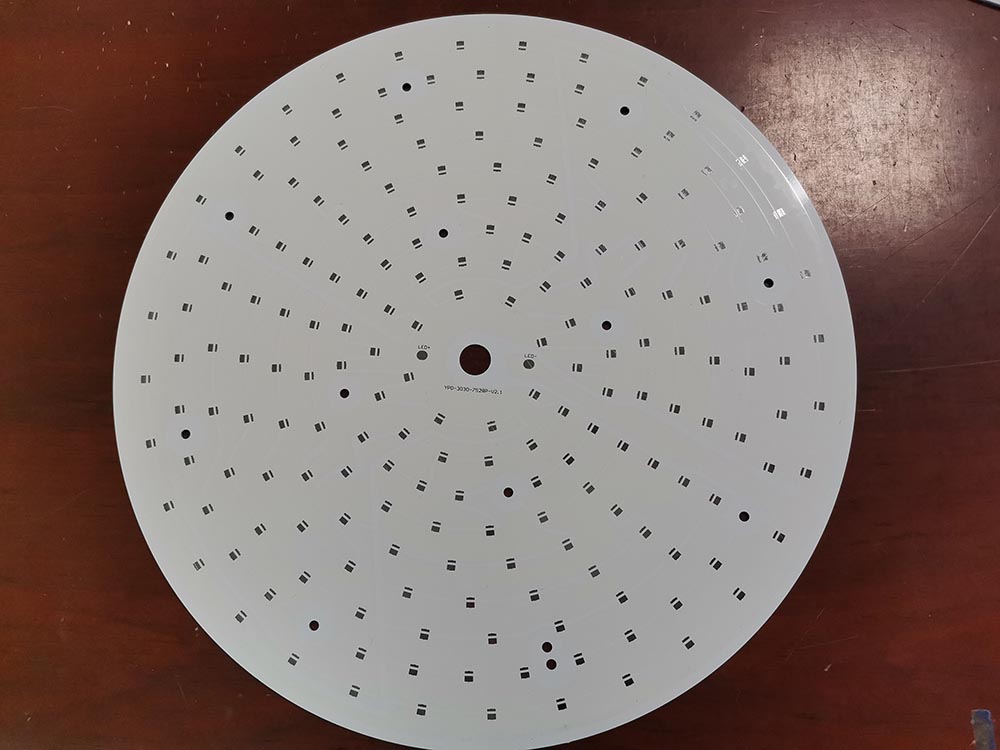

What’s the PCB sizes difference between all watts of led post top light fixture?

how-to-choose-led-post-top-area-lights-step-by-step

30W PCB

how-to-choose-led-post-top-area-lights-step-by-step

50W PCB

how-to-choose-led-post-top-area-lights-step-by-step

75W PCB

how-to-choose-led-post-top-area-lights-step-by-step

100W PCB

150W PCB

What’s the difference between 30W LED Post Top Area lights and landscape lights?

Decorative lamps of different shapes will add a lot of points to the courtyard, so people always like to install LED post top area lights in the courtyard, which can not only play its role in lighting, but also add a bit of charm to the courtyard.

However, many people can’t distinguish between led post top lights and landscape lights. Next, I will explain the difference between courtyard lights and landscape lights in detail.

First of all, landscape lights are a more general concept, including lawn lights, underwater lights, step lights and courtyard lights. In fact, the courtyard lamp is also a kind of landscape lamp. However, landscape lights and garden lights are different.

The essential difference between landscape lights and courtyard lights is not big, but the details are different. Landscape lights mainly play the role of landscape and can be used in squares, parks, courtyards and other places.

Courtyard lights mainly play the role of lighting and are mainly used in courtyards. It can be said that courtyard lights are a low profile for the public, while landscape lights will have higher requirements in terms of shape design and lighting effects.

As mentioned above, manufacturers of landscape lights are pursuing the appearance of the lights and the characteristics of night lighting effects.

Many people like landscape lights because of their diverse designs and different lighting colors.

Landscape lights will also be installed in some better tourist areas so that people can enjoy them at night.

Another difference is that the design and craftsmanship of landscape lighting is very complicated, but courtyard lighting is simple, which is the difference between them.

In short, landscape lights and courtyard lights are different, but there is not much difference. Their differences can be summarized as different designs, different uses, different lighting levels and different prices.

What are the features of led post top lights?

  1. Beam angle : 120 degrees
  2. Aluminum die casting heat sinks is good for heat dissipation.
  3. It’s major to replace the conventional area light.
  4. Green ,energy saving,long and relialble life of 50,000 hours.
  5. No RF interference ,no IR / UV radiation,no mercury pollution.
  6. Wide color availability in degrees Kelvin(K) 3000K 4000K 5000K 6000K
  7. Streamline exterior design,beautiful appearance.
  8. Environment friendly ,energy saving (70%~80%).
  9. Special circuit design,each LED work separately,avoiding the single broken LED influence problem
  10. Replace conventional area light.
  11. Precision die cast aluminum housing.
  12. Fade resistant powder coat finish.
  13. Easy installation.
  14. ETL CETL DLC SAA TUV CE ROHS listed

What are the advantages of 75W LED Post Top Light Fixture?

  • SMD Lumileds 3030 super efficiency 100lm/w,save energy as much as 70% compared with traditional lighting fixtures.100-277vAV input voltage,5000k daylight.
  • Black  finish circle,most popular used.Thin and modern design,make your garden more beautiful.
  • No UV or IR in the beam, IP 66 rating makes this Area light reliable. ETL DLC  approved, easy to get Nationwide Federal & State Rebates!
  • This garden light is mainly designed for car parking lots,plaza lighting,outdoor sports ,gardens etc,with ac- curate light distribution design,they have very good uniformity to meet flood lighting requirements for these applications.

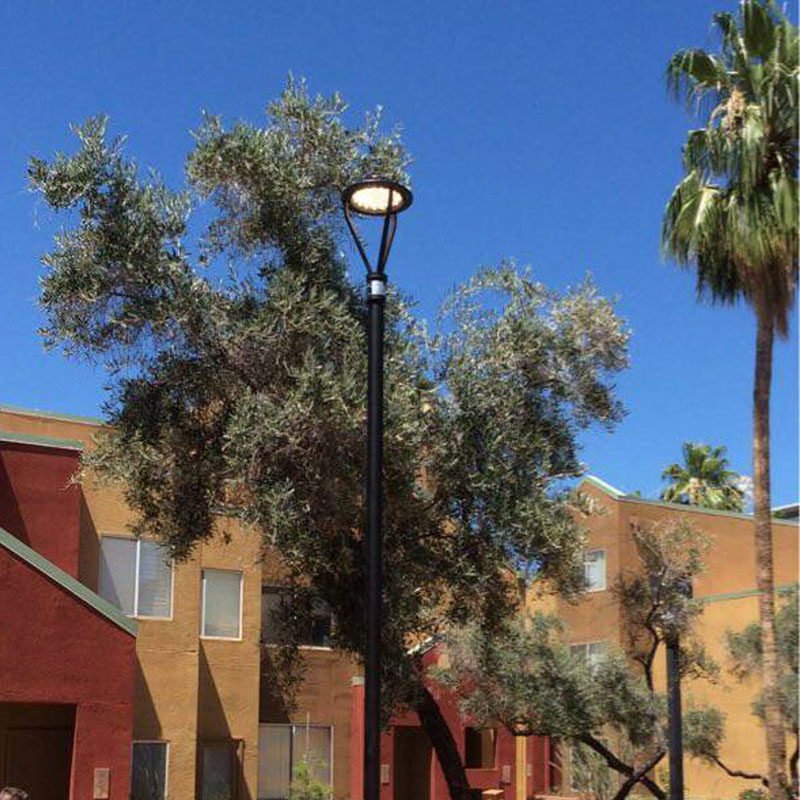

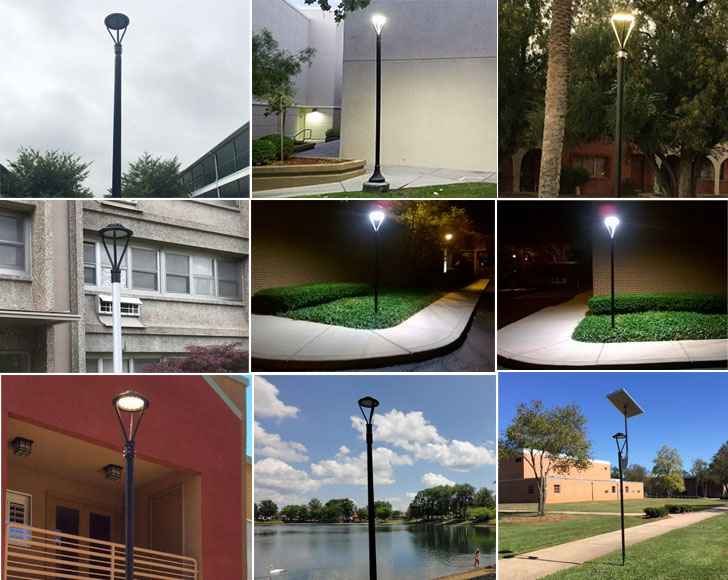

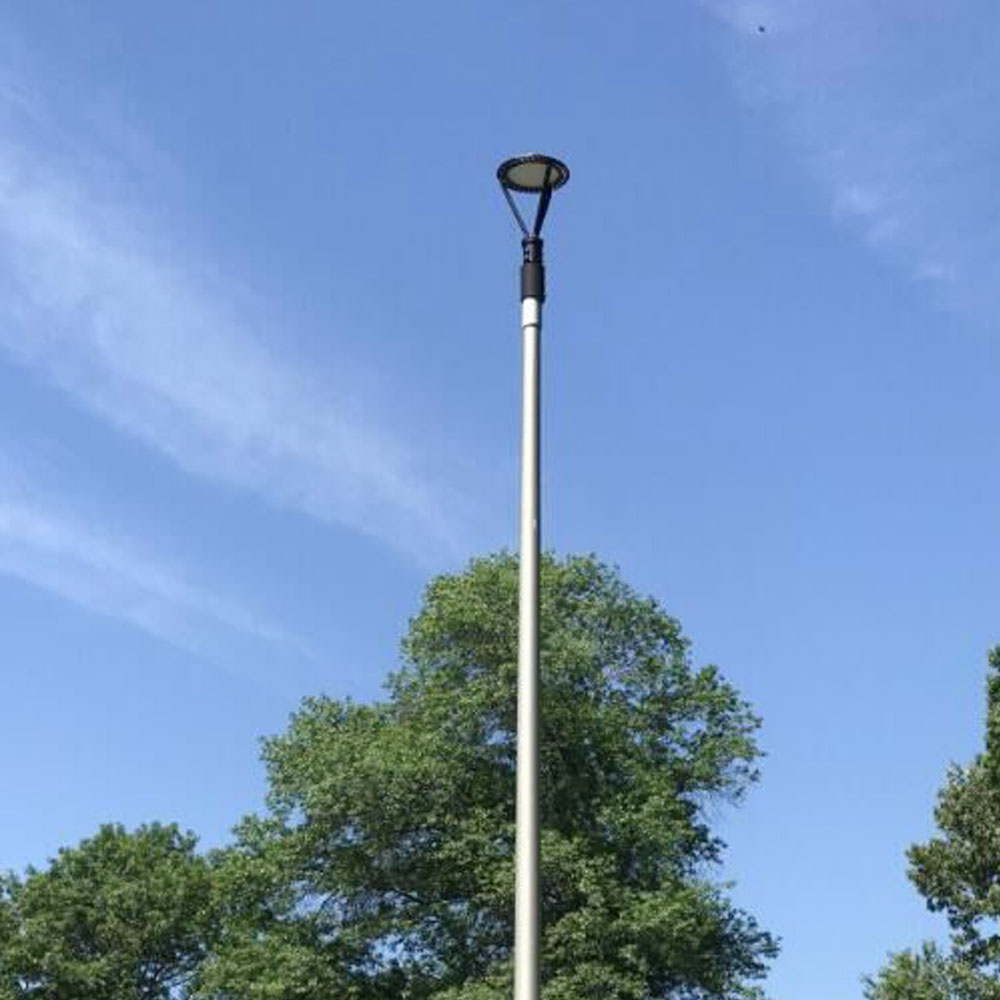

What’s application of led post top area light?

Courtyard lighting

Street scapes lighting

Public parks lighting

Parking areas lighting

Hotel lighting

How to install about led post top fixtures?

Fixture assembly

Feed the (3) Housing wires through one of the three Rods.

Clip the (3) Rods onto the Housing. Be sure the Housing

clips are properly engaged onto the Rods.

Feed Fixture Wires through the Tenon Pole Adaptor.

Slide Tenon Pole Adapter on three Rods. Be sure the notches face the inside of the tenon Pole Adapter.

Tighten the (3) Set Screws at the Tenon Pole Adapter to secure Rods.

Pole mounting

Turn off the power before installation

Wiring right in the wiring box(”Black”is connected to”L”,”White”connect to”N”,”Green”to“Ground”) and set the lamp into

the bracket by the hole.(picture1).

We should fasten the four screws with a hex wrench,and finished(picture2).

Wall mounting

How about our quality control?

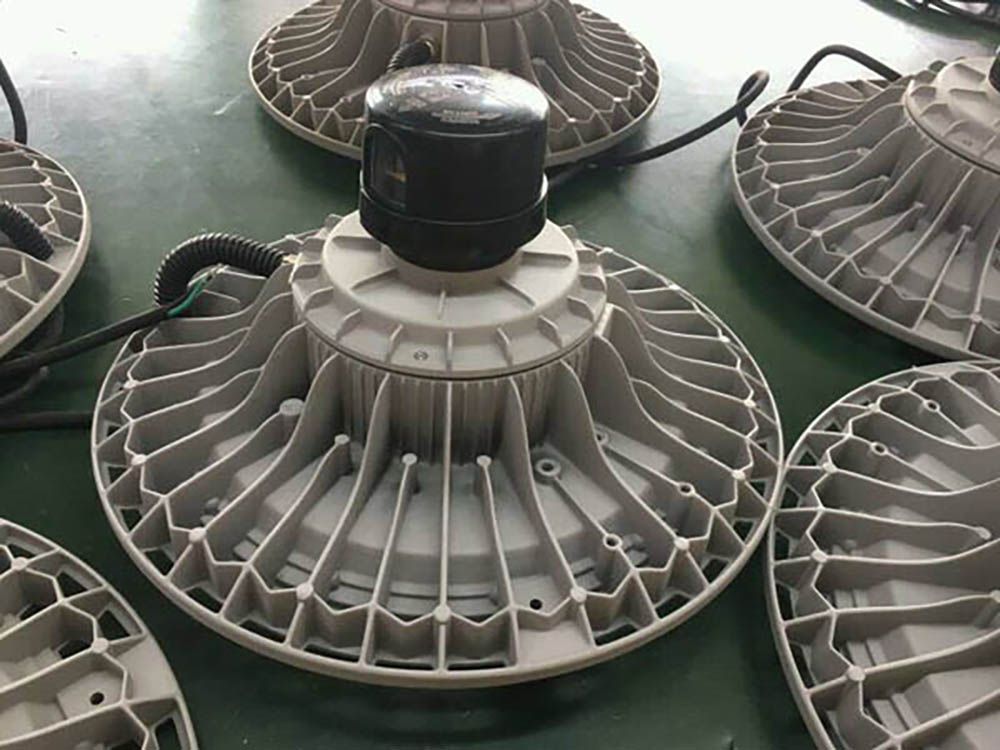

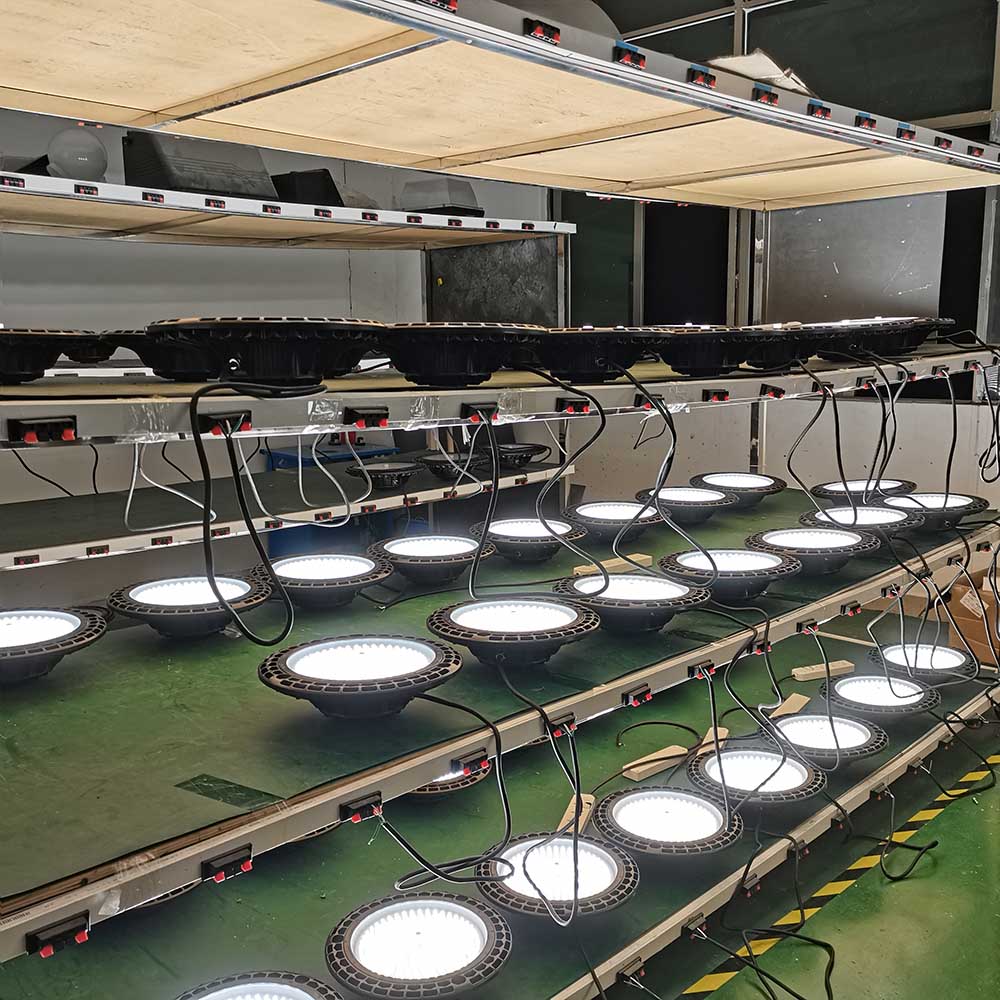

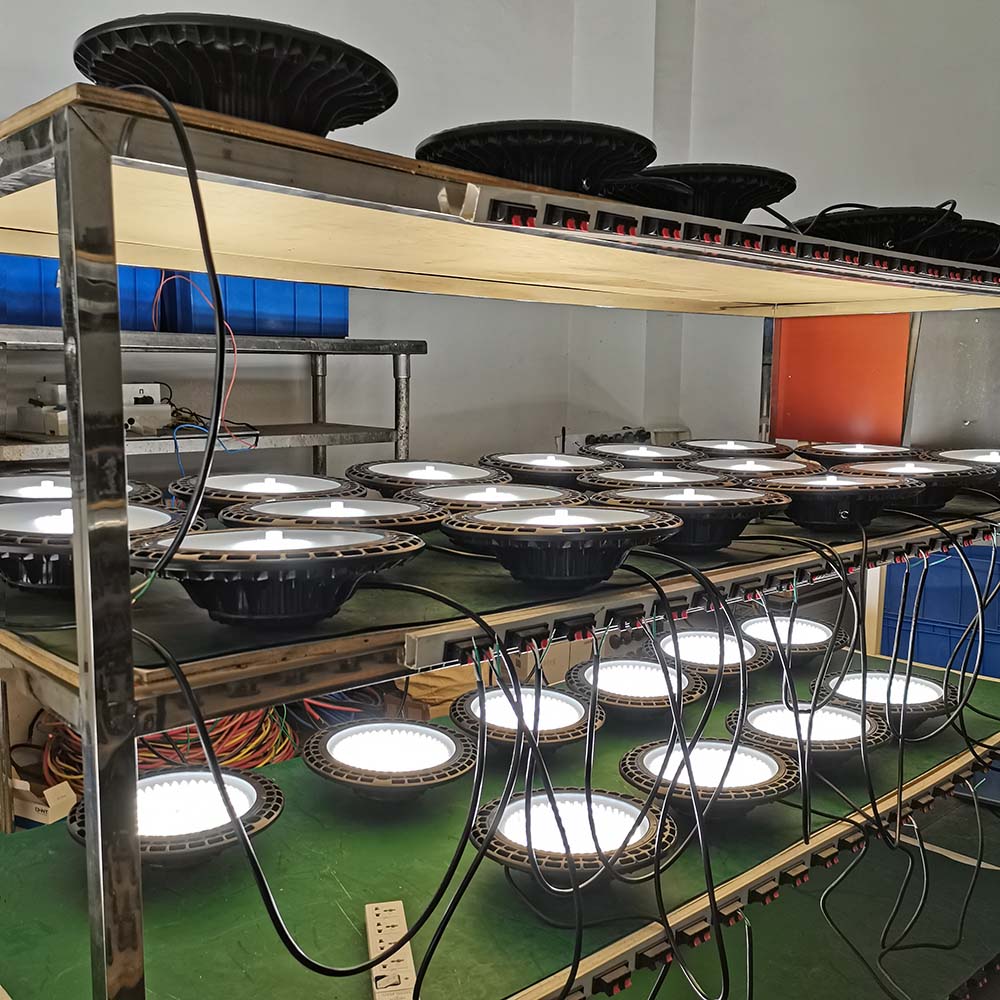

Each order will aging  8-10 hours test after production is completed, then the QC department will check all the inspections and pack them.

how-to-choose-led-post-top-area-lights-step-by-stephow-to-choose-led-post-top-area-lights-step-by-step

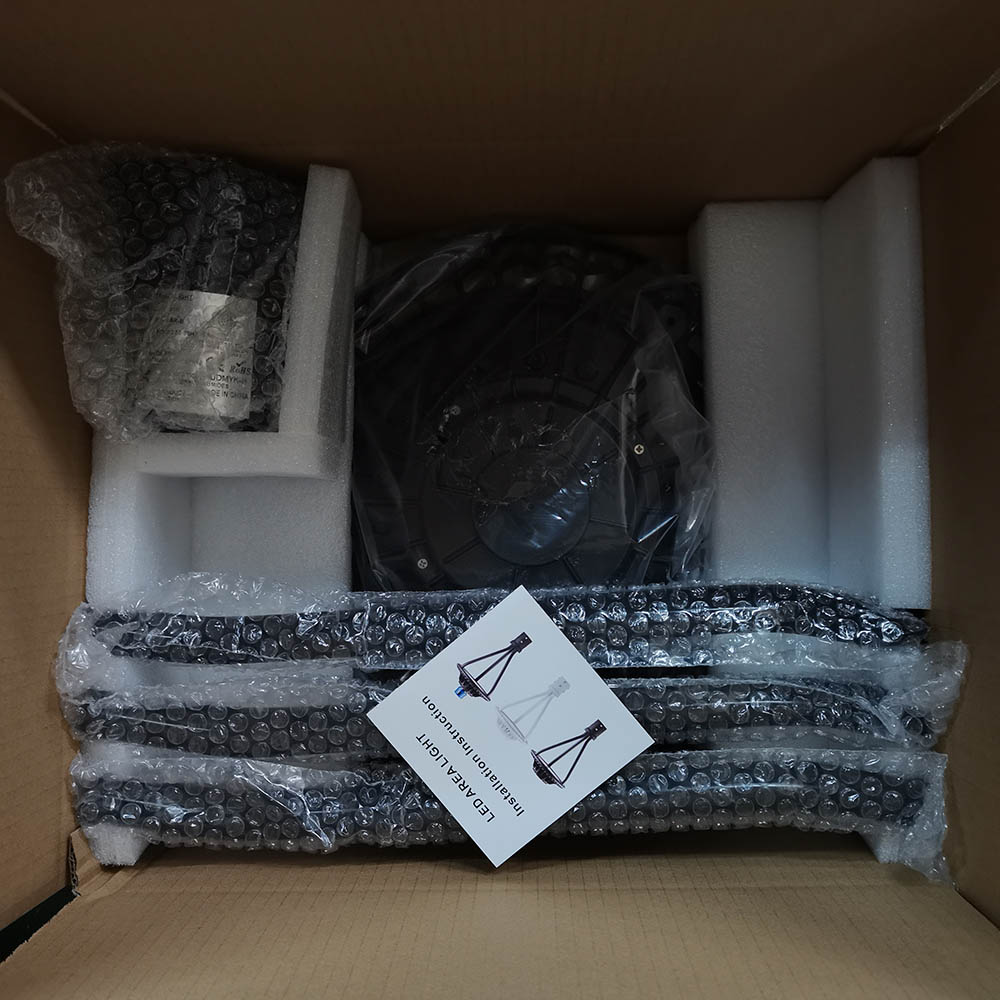

How about the packing information of 100W led post top light Fixture?

Standard export carton box, 1pc per box, gross weight is 6KG, and the carton size is 44*38*21cm

how-to-choose-led-post-top-area-lights-step-by-step

What’s the warranty of our LED Post Top garden light?

Bbier guarantee all products sold by Bbier all with strictly QC passed.

All products sold from Bbier with 5 years from the EXW date .

Warranty Group :

Resellers or their direct customers or customers who purchase directly from Bbier . The warranty applies if any of the following occurs:

  1. Failure of function without external factors.
  2. Light flickering.
  3. Over 35% depreciation of light output compared with initial lumens.

Bbier’s liability under the limited warranty:

  1. Within the warranty period, Bbier provides free repairing service.

Bbier will warranty the items according below :

No. Leave Factory Date The Responsibility

1. Within 30 days Bbier Offer Replaced or maintained with free freight cost .

2. 30 days to 1st year Bbier Offer Parts for maintained with free freight cost

3. 1st year to 3rd year Bbier Offer Parts +50% freight cost .

4. 3rd year to 4th year Bbier Offer Parts +25% freight cost .

5. 4th year to 5th year Bbier offer parts for maintained , customer bear freight cost .

  1. If certain items can be repaired, But Warranty Group still want new replacements ,Bbier will collect some

extra cost on new replacements to Warranty Group.Different items collect different cost .

  1. If certain items can not be repaired, and the defectiveness rate is less than 2%, Bbier will offer new ones for replacement at no extra cost.The replacements will be shipped with next order of the reseller or customer.

Exclusions—This warranty does not cover the followings:

  1. Problems caused by improper operation of the buyer, including damages of light source and driver caused by unstable current flow.
  1. Goods dismantled or modified without approval by Bbier. Goods Not purchased from Bbier .
  2. Operation temperature exceeds the range of -40℃ to 55℃
  3. Repair work done by unauthorized personnel without Bbier’s approval.
  4. Force Majeure and other fact of God.

6 .Damages cause by installation not in accordance with Bbier’s Instruction,or directly connect AC without remove the ballast .

7. It’s normal that less than 0.3% LED chip burn out of single lamp .

Customer’s liability:

a.Customers must provide clear pictures or video to verify the defectiveness.

b.Customers must open the parcel to check lamps before sign the courier receipt ,some proplems occured

during delivery ,if signed without check, we will refuse to warranty .

*Note: Bbier will continue to provide repair service with minimum charge on repair parts and shipping, after the warranty period.
